Ⅰ. Processing flow

Tank Loading, Circulating water Washing, Brush Washing, Live water Cleaning, Hot-air Drying, Egg Feeding, Breaking, Eggshell separation, Egg yolk & white separation, Egg yolk & white Collection

Ⅱ. Technic parameters

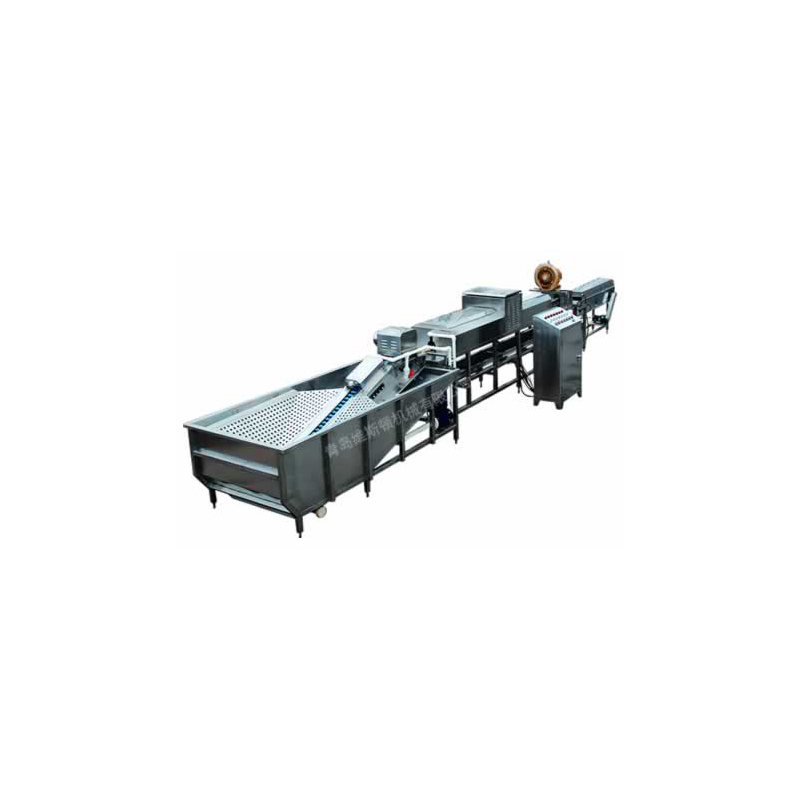

Machine Name                                     Egg Washing & Drying & Breaking machine

Model                                                 WXD96

Productivity                                         9600pcs/h

Egg Beating Position                             3row

Egg liquid production rate                     87%

Delivery Speed                                     0 - 0.5m/s, Steplessly adjustable

Power                                                 6.5kw

Power supply                                       380V

Outsize                                               4000x880x1100mm

Approximate weight                               1750kg

Ⅲ. Machine Features

1. Washing Device use Separate push-button interface, simple and convenient operation;
2. Egg Breaker device use PLC touch screen control interface, operation intelligence;
3. Fully automated control after loading eggs, Convenient operation and Low labor;
4. The main structure is made of thick 304 stainless steel, which is firm, non-deformable and long service life;
5. Food contact part is made of food-grade 304 stainless steel, which meets food safety requirements;
6. Main accessories are integrally formed with automatic tools to ensure stable and reliable operation for a long time;
7. Less egg liquid left in the eggshell, higher economic efficiency;
8. Fast cleaning to control eggs are contaminated and ensure egg quality;
9. Key components of the equipment are imported from Germany & the USA, with low wear, low noise and durable.
